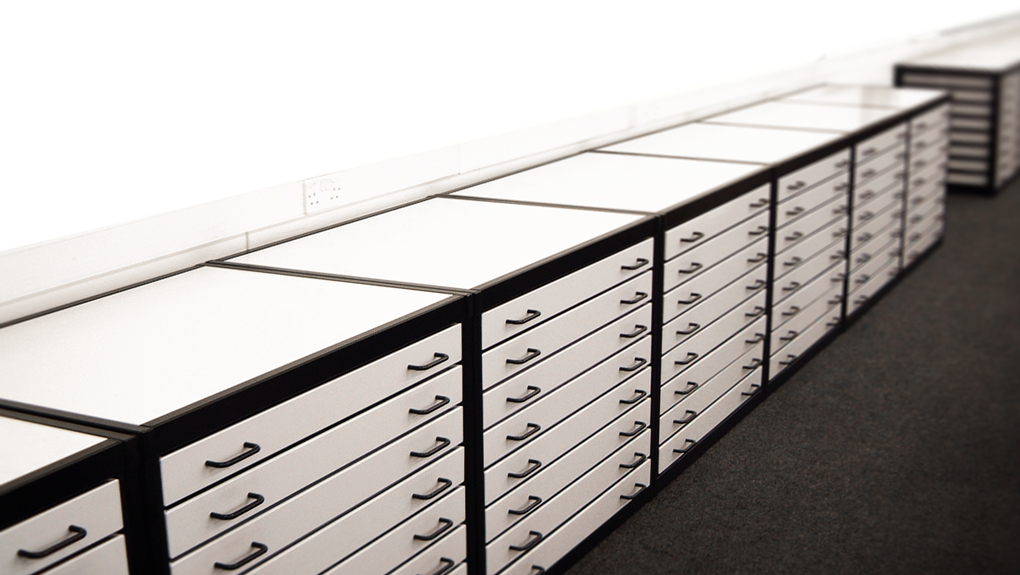

The Orchard Metal Plan Chest is built in Yorkshire for secure horizontal storage of A0 and A1 drawings. Steel drawers and frame, an inset MFC worktop, and multi-tone colour options — delivered fully assembled.
Models & Prices ConfigureAvailable in 6, 8, or 10 drawer models for A0 or A1 paper. Configure colours to match your studio or corporate finish, or call us for multi-colour and special matches.

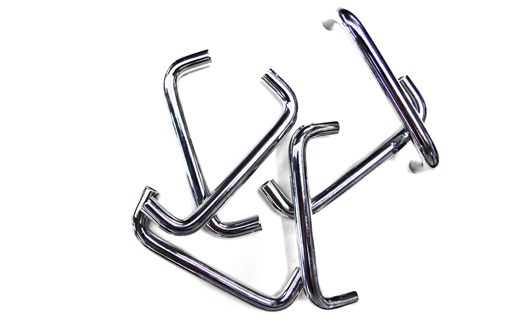

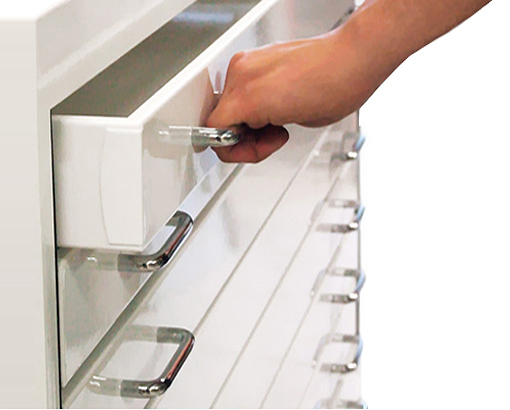

Each drawer is folded and welded sheet steel, with a hole in the base so sheets lift out cleanly. The frame stops drawers being pulled fully out from the front. Metal D-handles (two per drawer) and an inset 18mm MFC worktop finish the cabinet. Nylon skids protect floors; castors and magnetic label holders are available.
| Paper | Drawers | Dimensions (W × D × H) | Drawer depth | Weight |
|---|---|---|---|---|
| A1 | 6 | 950 × 680 × 850 mm | 83 mm | 140 kg |
| A1 | 8 | 950 × 680 × 850 mm | 83 mm | 155 kg |
| A1 | 10 | 950 × 680 × 850 mm | 65 mm | 170 kg |
| A0 | 6 | 1320 × 945 × 850 mm | 83 mm | 198 kg |
| A0 | 8 | 1320 × 945 × 850 mm | 83 mm | 220 kg |
| A0 | 10 | 1320 × 945 × 850 mm | 65 mm | 235 kg |
Configure your Orchard Metal Plan Chest — choose top, drawers, frame and handle finishes.
In addition to the colours in the configurator, we can match specific corporate colours and do multi-colour drawer finishes. Call 01924 291333 to discuss.
Orchard Metal — open drawers, MFC worktop, full colour configurator. Best when the chest is also a work surface or needs brand colours.
Milano — fully enclosed lockable metal cabinet (white or grey). See Milano Metal Plan Chest.
Prefer wood? See Traditional and Heath (wooden MFC on steel legs), or read Wood vs metal plan chests.
Configure colours · Shop plan chests · Call 01924 291333 · Education bulk orders welcome
We can make plan chests to meet many storage needs including musical instrument storage with felt lined drawers and specific dimensions or features.
The Orchard Metal plan chest is supplied with metal D-handles and an inset 18mm MFC work top. For safety, the design of the drawers and frame prevent the drawers from being completely removed from the front of the cabinet.
