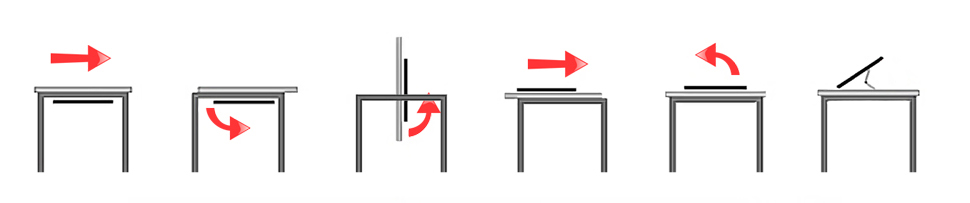

Simply slide the center section away from you and rotate through 180°. Slide the table top away again to lock it into position, then raise the drawing board to the desired working angle.
Work the way you want
Lets Get Drawing

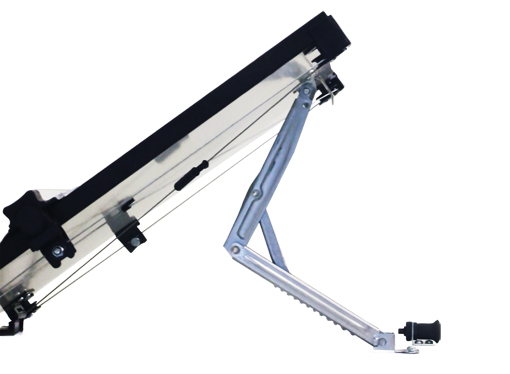

Once in use the A1 or A2 continuous cross-wire drawing board may be set at one of 13 different working angles and then closed securley with a spring loaded bolt.

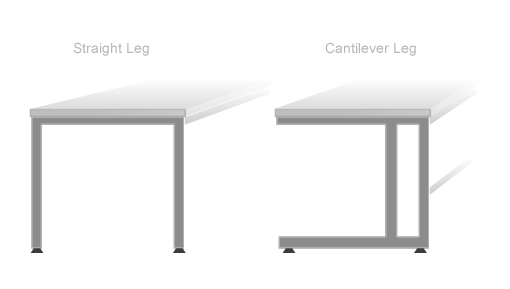

Table Leg Configurations
Styled to suit
To best suit your space constraints and style requirements, there are several configurations available. From straight leg to canteliver leg styles and various table top layouts.

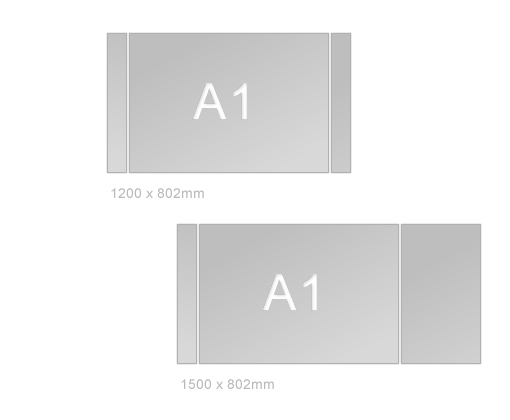

1200mm or 1500mm
Fitted with an A1 cross-wire drawing board, the standard configuration for an A1 flip top drawing table features a 100mm panel to each side of the revolving center section. If extra work space is required to the side of the A1 drawing board, the 1500mm features a 400mm wider worktop.

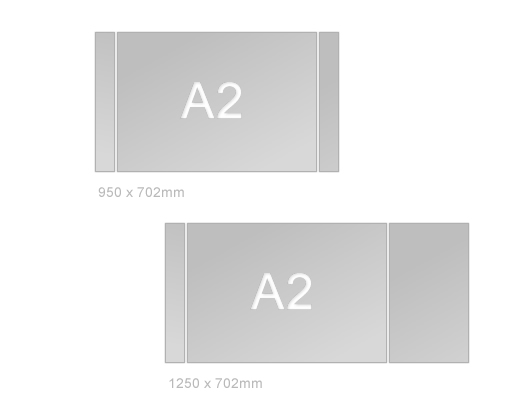

950mm or 1250mm
Fitted with an A2 cross-wire drawing board, the standard configuration for an A2 flip top drawing table features a 100mm panel to each side of the revolving centre section. If extra work space is required to the side of the A2 drawing board, the 1250mm features a 400mm wider worktop.
Custom Built Tables
Unique design for unique design

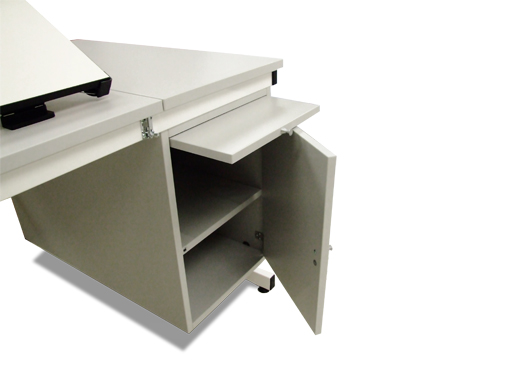

As the manufacturer we are able to configure any of our Flip Top tables to meet specific dimensions, colour finish, or functionality requirements such as these specially designed pedestals.
