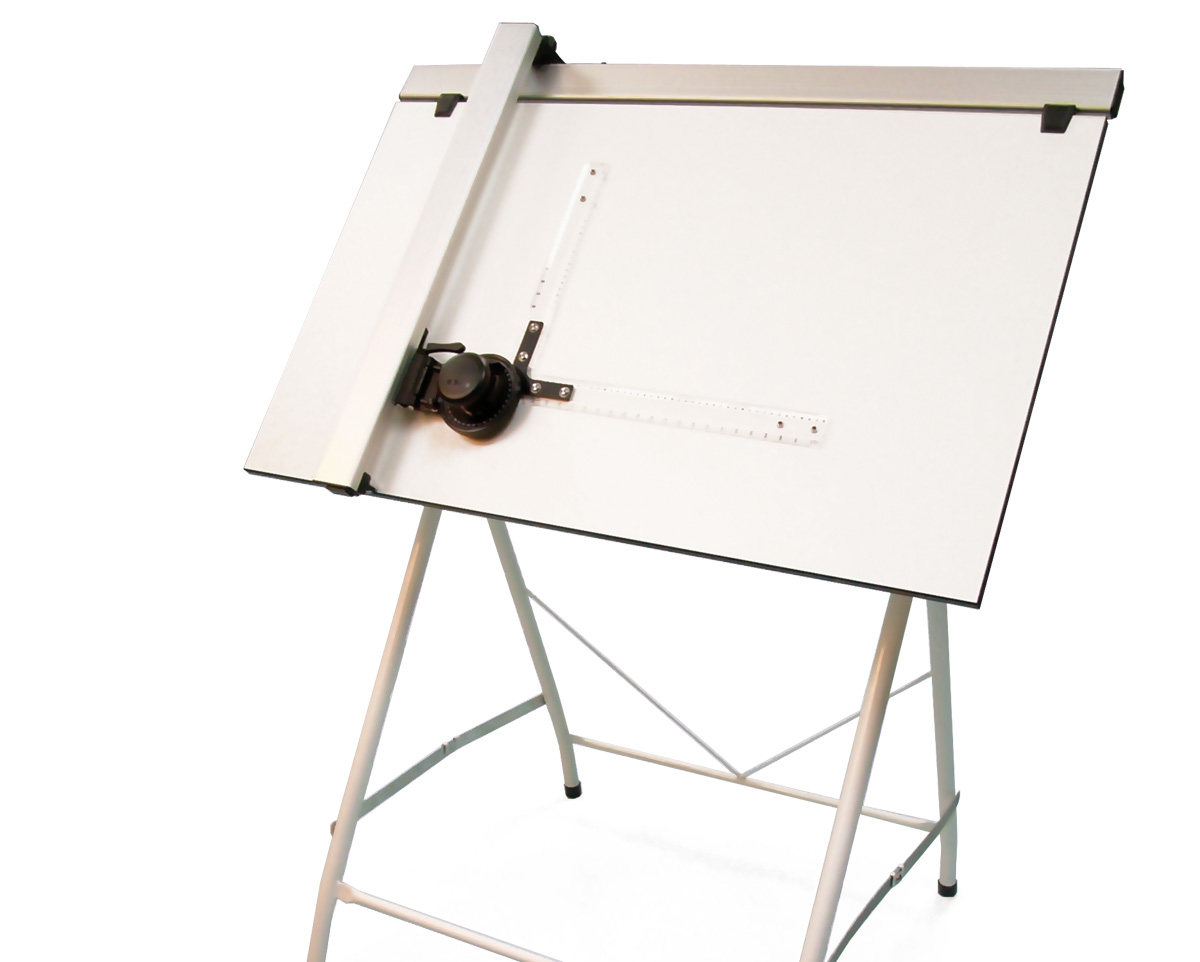

Ackworth Drafting Table with professional drafting machine

Down to the detail

For the ultimate is drawing precision, the Ackworth Drafting table is fitted with the Mutoh LAN professional drafting machine and floor standing Ackworth A-frame stand.

Whether you need to take your work on the road, or simply need to make the most of your limited workspace, the Ackworth A-frame offers a great combination of functionality and portability that makes it an excellent choice for professionals and hobbyists alike. Whether you're working on large-scale plans or simply need a stable, comfortable platform for your art and design projects, this light table stand is sure to meet your needs.

Models & Prices

Features

Floor Standing
Angle Adjustment
Height Adjustment

Sizes for

A0 paper
A1 paper
A2 paper

Drafting Machine

Vertical / Horizontal Motion
Counter-Balanced

CHOOSE YOUR ACKWORTH

A0X Ackworth Mutoh Drafting Table

Free UK Delivery ✓

More +Less

  • Board Size - 1500 x 920mm
  • Paper Size - A0
  • Machine - Mutoh LAN
  • Metric Scale - 1:1 / 1:2
  • Horizontal Ruler - 400mm
  • Vertical Ruler - 250mm
  • Height and Angle Adjustment
  • Full Stand Adjustment
  • Stand - White
  • Weight - 35kg

£1651.20Inc. £275.20 VAT
Select

A1X Ackworth Mutoh Drafting Table

Free UK Delivery ✓

More +Less

  • Board Size - 1100 x 650mm
  • Paper Size - A1
  • Machine - Mutoh LAN
  • Metric Scale - 1:1 / 1:2
  • Horizontal Ruler - 400mm
  • Vertical Ruler - 250mm
  • Height and Angle Adjustment
  • Full Stand Adjustment
  • Stand - White
  • Weight - 25kg

£1528.80Inc. £254.80 VAT
Select

A2X Ackworth TOM Drafting Table

Free UK Delivery ✓

More +Less

  • Machine - A2 Tecnostyl TOM 150°
  • Board Size - 750 x 520mm
  • Stand- A-Frame (Height & Angle)
  • Metric - 1:1 / 1:2 / 1:2.5 / 1:5
  • Horizontal Ruler - 300mm
  • Vertical Ruler - 200mm
  • Stand Colour - White
  • Weight 15kg

£718.80Inc. £119.80 VAT
Select

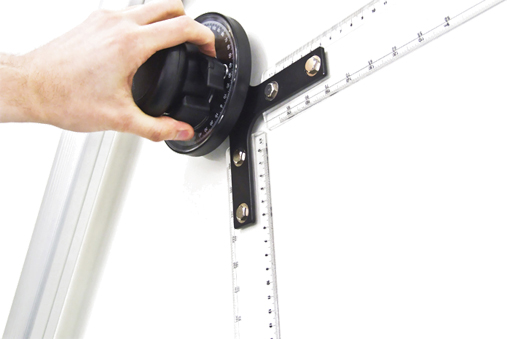

Mutoh LAN

Professional Drafting Machine

Designed for professional use, the Mutoh LAN drafting machine is both robust and easy to use whilst offering precision and a full range of movement and super smooth motion. Mutoh manufacture their drafting machines in Japan to the highest standards which helps ensure the precision and accuracy of your drawings.

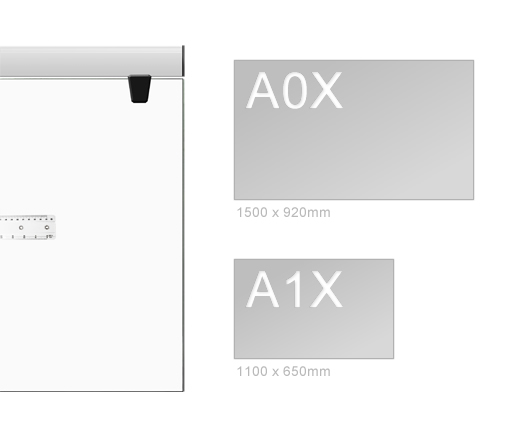

Size yourself up

A0 | A1

The surface of the Ackworth drafting table is slightly wider than standard which reserves a space for the vertical arm of the drafting machine whilst still retaining sufficient area for A0 or A1 paper. This allows you to park the drafting machine over to one side while changing your paper.

Work the way you want

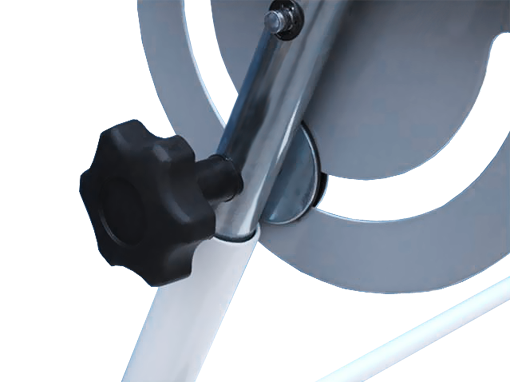

Free-standing frame

The Ackworth A-frame is a versatile, free-standing solution that provides the ultimate in flexibility and convenience. With its height and angle adjustment capability, this sturdy steel stand allows you to find the ideal working position for your projects, and its easy-to-remove design makes it convenient to transport or store when not in use.

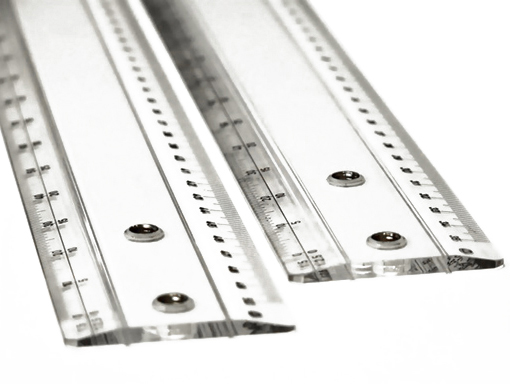

Drafting Scale Rulers

Precision you can measure

As standard the drafting machine is supplied with 1:1 and 1:2 metric scale rules. Please contact us if your requirements are different.
