Vertical Plan FramePFR01

£288.00
£288.00 inc VAT
Add to Cart
Worldwide Delivery ✓
FREE UK Delivery
Lifetime Warranty ✓
Made by ORCHARD UK ✓
Fully Assembled ✓
Add to Cart
Need help buying?
- Call 01924 291333
- Live Chat
- Message Us

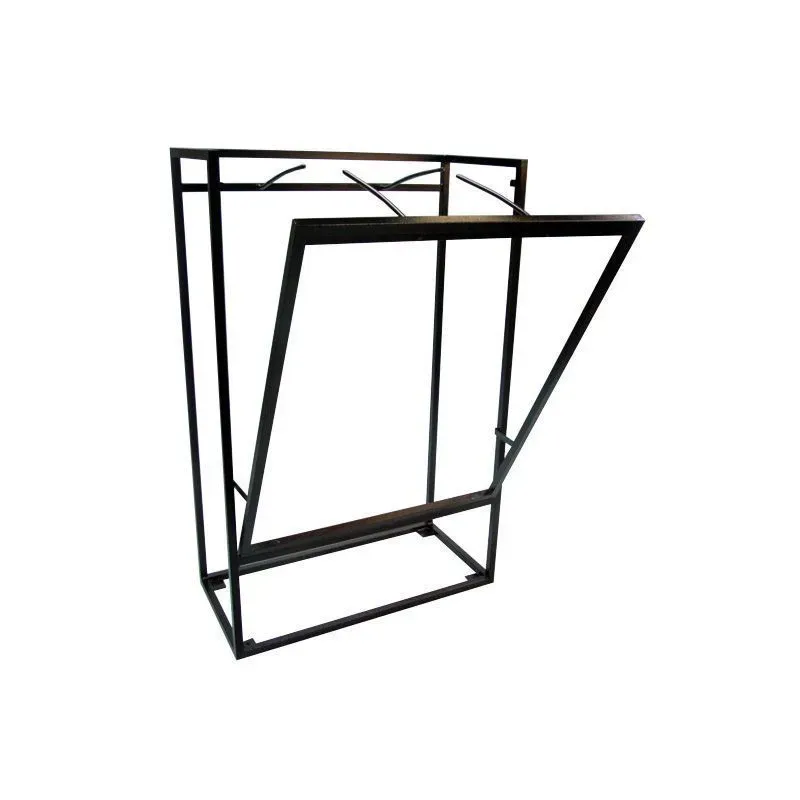

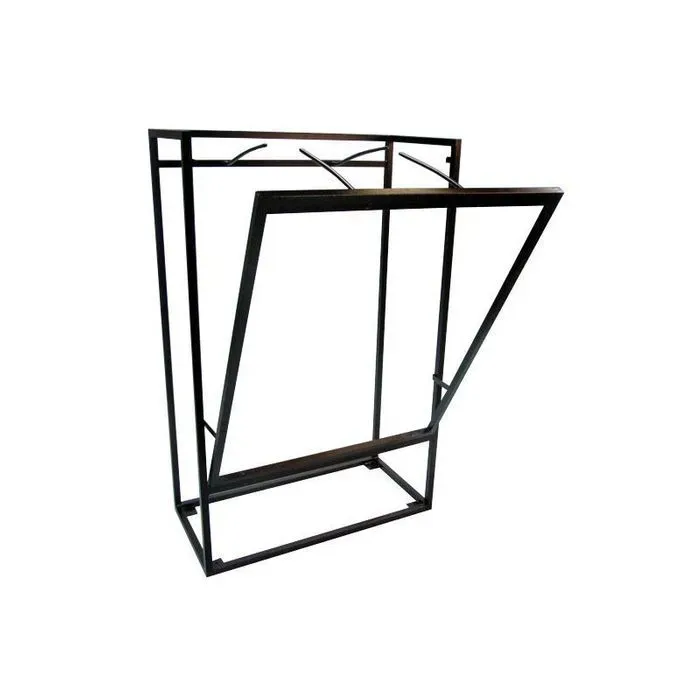

Simple and practical, the fully welded steel Vertical Plan Frame is a skeleton framework which provides a strong and robust way to store up to 800 drawings.

Featuring a standard 4 prong configuration, the a hinged opening creates a large format lever arch system. This makes is easy to find and retrieve any individual drawing.

Designed to work in conjunction with self adhesive plan strips which effectively give you drawings hole punching without damaging the paper.

The frame is finished in black and also features and mounting points to allow you to secure the frame down to the floor. This is recommended for safety.

  • Paper Size - A0
  • 800 sheet capacity
  • Steel
  • Dimensions - 940W X 450D X 1460H
  • Weight - 18kg
