A1 1500 Cant. Flip Top Drawing DeskCF01

£631.20
£631.20 inc VAT
Add to Cart
A1 Fliptop A2 Fliptop Standard Leg (Narrow) Standard Leg (Wide) Cantilever Leg (Narrow) Cantilever Leg (Wide)
£20.40

A1 Board Lip

Both handy and discrete, the A1 board lip runs 85% the width of the board and provides an ideal ledge for pens / pencils and brushes.

£9.83

A1 Calibration on Straight Edge

Calibrated 1mm markings across the full length of the straight edge blade.

Worldwide Delivery ✓
FREE UK Delivery
5 Year Warranty ✓
Made by ORCHARD UK ✓
Fully Assembled ✓
Add to Cart
Need help buying?
- Call 01924 291333
- Live Chat
- Message Us

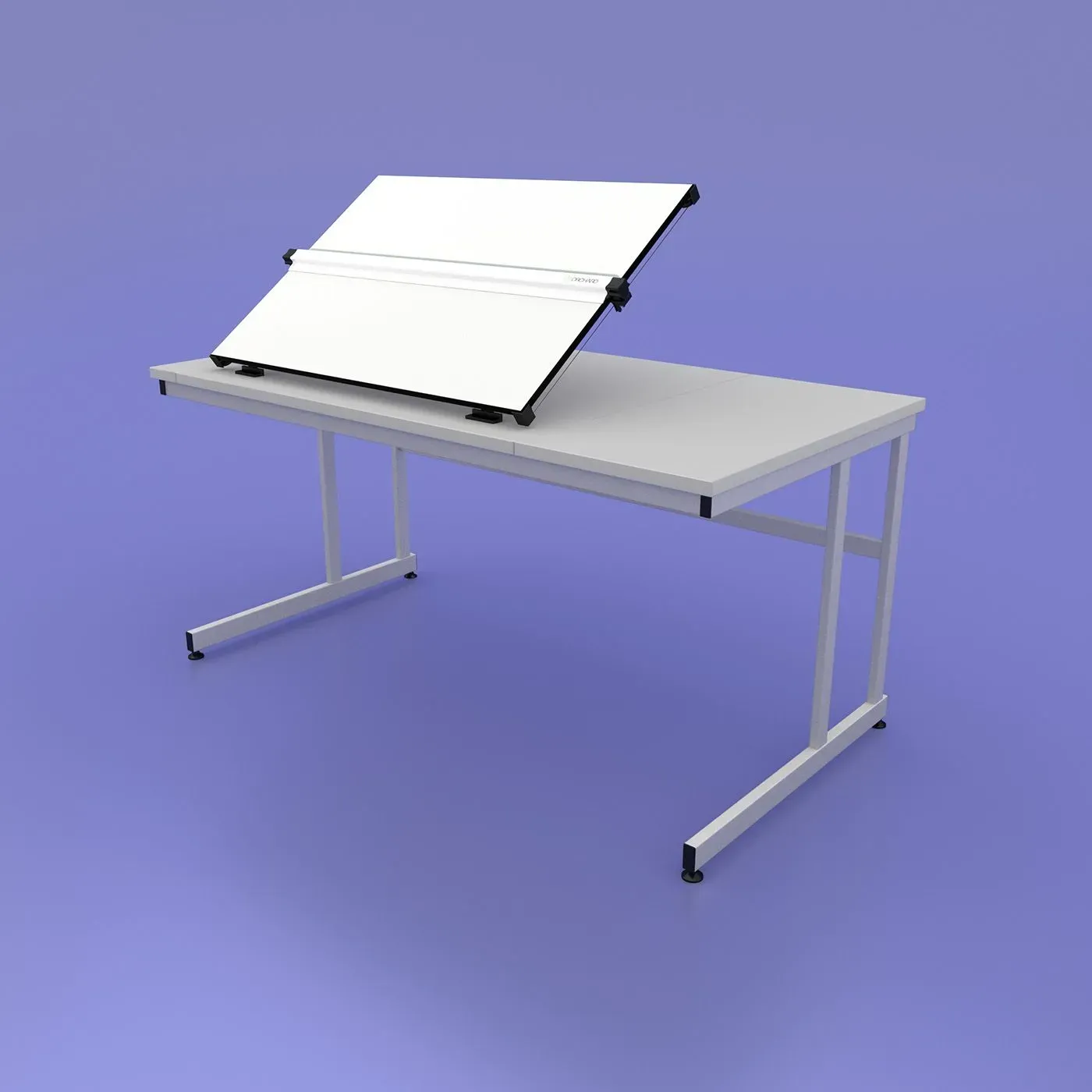

Create the perfect dynamic workspace in your studio with the A1 1500mm Cantilever Flip Top Drawing Desk.

Making the most of your available space; you can bring your full size A1 drawing board in and out of use by simply rotating the centre of the table.

Quickly and easily angle the drawing board in up to 13 different positions to find your perfect drawing setup. Folding it flat locks the drawing board down to the desk so it remains closed when you rotate the desk to turn your table back into a normal 1500mm wide desk.

The 1500 x 802mm table top provides plenty of desk space even with the drawing board in use.

Featuring a cantilever leg style fully welded steel table frame and a concealable cross-wire drawing board for precise design work.

  • Parallel Motion Type Cross-wire
  • Frame Style Grey / Cantilever Leg
  • Table Top 25mm Grey
  • Paper Size A1 (841mm x 594mm)
  • Board Size 920 x 650mm
  • Table Dimensions 1500 x 802mm
  • Adjustment 13-stage Angle
  • Supplied fully assembled

Are Flip-Top Tables available in different colours?
Yes. The paint finish on the table frame can be changed from textured grey if required. Contact us for details 01924 291333.

Are these tables stackable?
Not really. You can up-turn one table on an another, but the drawing board on the underside of the table stops the desks being interlocked.

Are the legs removable?
As standard no. However, we make them to order and can do straight and cantilever styles with bolt on legs if required. Contact us for details 01924 291333.
